Our expert in-house
Research and Development team
works directly with OEM design teams to
deliver bespoke, robust and complex
anchoring solutions—whether by
integrating one of our proven systems or
engineering a fully custom design.
TELESCOPIC SYSTEM
ULTRA-RIGID. INCREDIBLY VERSATILE.
- Provides a 30 cm extension when anchor is deployed
- 30% more resistant to side loads than other extending anchor rollers
- Uses special skid plates instead of roller bearings, reducing maintenance
- Requires no electronic or hydraulic systems—operates on windlass tension
- Suitable for boats up to 20 meters LOA
- Supports 8-45 kg Ultra Anchors
This highly rigid and compact telescopic anchor system provides a 30 cm extension when the anchor is in use. Unlike other extending anchor rollers on the market, it is at least 30% more resistant to side loads in the extended position due to its unique heavy-duty construction. Additionally, it uses special skid plates instead of roller bearings, requiring much less maintenance. Additionally, it requires no electronic or hydraulic systems, operating solely on tension from the windlass.
ARM SYSTEM
INNOVATIVE ELEGANCE, SIMPLIFIED.
- Ideal for inverted and vertical bow designs
- Delivers the functionality of more complex systems at a fraction of the cost
- Enhances aesthetics by showcasing the Ultra Anchor from a unique angle
- Requires no electronic or hydraulic systems—operates on windlass tension
- Suitable for boats up to 12 meters LOA
- Supports 8-16 kg Ultra Anchors
This signature anchor deployment system is ideal for inverted and vertical bow designs. It showcases the Ultra Anchor from the most captivating angle when not in use, adding a distinctive design element to the bow. It also provides adequate extension of the anchor arm, ensuring sufficient clearance for safe maneuvering during anchoring. Additionally, it requires no electronic or hydraulic systems, operating solely on tension from the windlass.
CATAPULT SYSTEM
SMOOTH OPERATOR.
- Designed for boats with limited vertical bow space
- Compact assembly requires minimal installation space
- Electrically powered for smooth, silent anchor deployment and retraction
- Ensures durability in challenging sea conditions
- Suitable for boats up to 12 meters LOA
- Supports 8-16 kg Ultra Anchors
This electrically operated catapult anchor system is designed specifically for applications with limited vertical space in the bow, making it ideal for boats with unique or compact bow designs. The entire assembly is extremely compact, requiring only minimal space for installation without compromising on performance. Powered by a robust, silent electric motor, the system ensures safe and smooth anchor deployment and retraction, while also offering durability in challenging sea conditions.
THROUGH HULL SYSTEM
SUPERCOMPACT.
- Compact and customizable design, ideal for RIBs and rubber boats
- Enables self-launching at angles where other anchors may struggle
- Keeps anchor shank fully concealed when not in use
- Creates a sleek, integrated bow appearance
- Suitable for boats up to 10 meters LOA
- Supports 8-12 kg Ultra Anchors
This electrically operated catapult anchor system is designed specifically for applications with limited vertical space in the bow, making it ideal for boats with unique or compact bow designs. The entire assembly is extremely compact, requiring only minimal space for installation without compromising on performance. Powered by a robust, silent electric motor, the system ensures safe and smooth anchor deployment and retraction, while also offering durability in challenging sea conditions.
PULPIT ROLLER
SCANDINAVIA’S FAVORITE.
- Designed for installation within a pulpit or aft swim platforms
- Incorporates Ultra Bow Roller Car for seamless operation
- Option to integrate chain stoppers for added security
- Suitable for boats up to 23 meters LOA
- Supports 5-60 kg Ultra Anchors
The pulpit roller assembly offers a smart solution for anchor installations within a pulpit or aft swim platforms. It integrates our unique Ultra Bow Roller Car providing a seamless operation and safety. Additionally, integrated chain stoppers can be included upon client request for enhanced security.
TWIN ROLLER
HEAVY-DUTY. NO COMPROMISE.
- Heavy-duty system for a dual Ultra Anchor setup
- Rigid yet lightweight construction for compatibility with different vessels
- Supports dual primary-weight anchors
- Option to integrate chain stoppers or locking mechanisms for added security
- Suitable for boats up to 35 meters LOA
- Supports 60-160 kg Ultra Anchors
Our heavy-duty twin roller system offers a compact solution for a dual Ultra Anchor setup. This rigid yet lightweight construction supports a variety of anchor sizes, maximizing compatibility for different vessel needs. It is also capable of accommodating a dual primary- weight anchor setup. Additionally, integrated chain stoppers or extra locking mechanisms can be included upon client request for enhanced security.

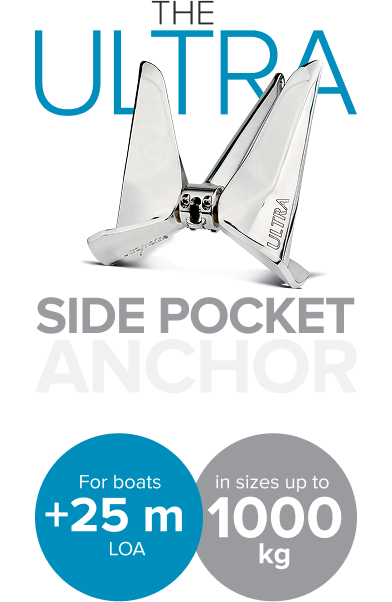

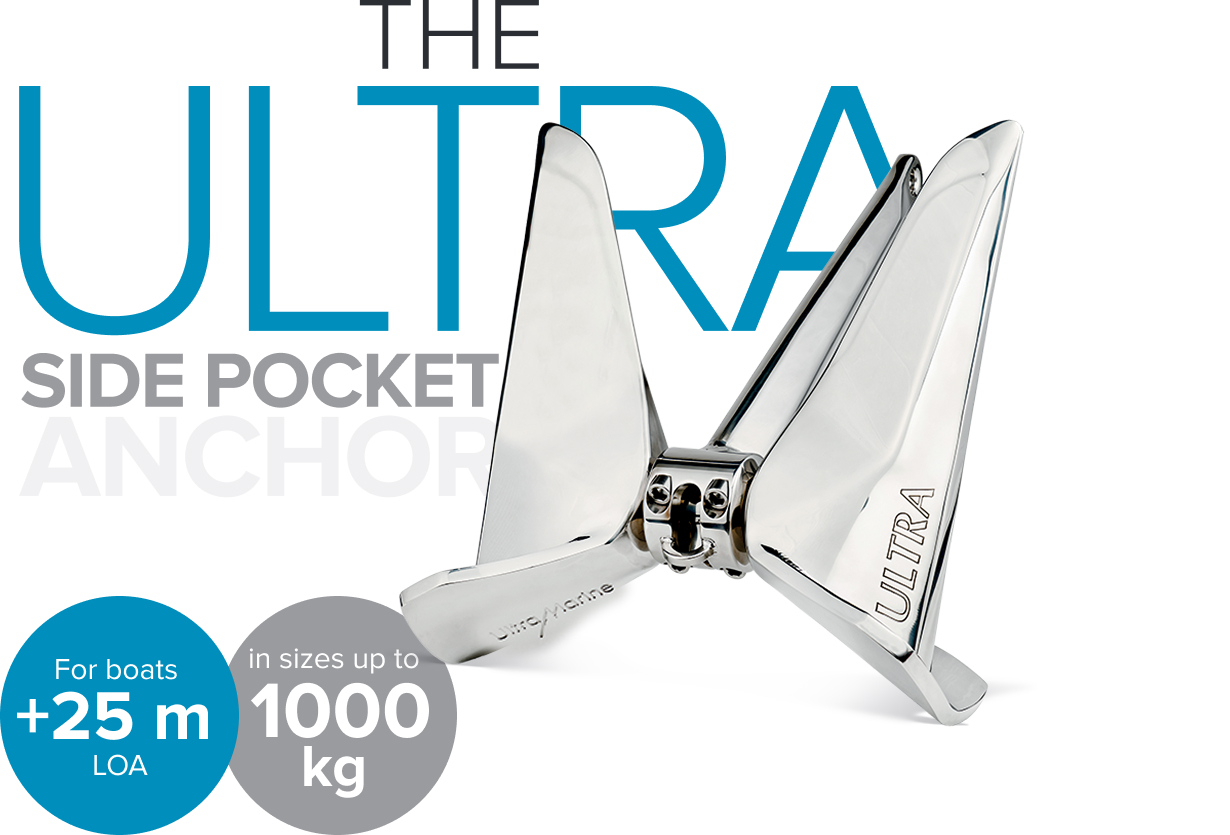

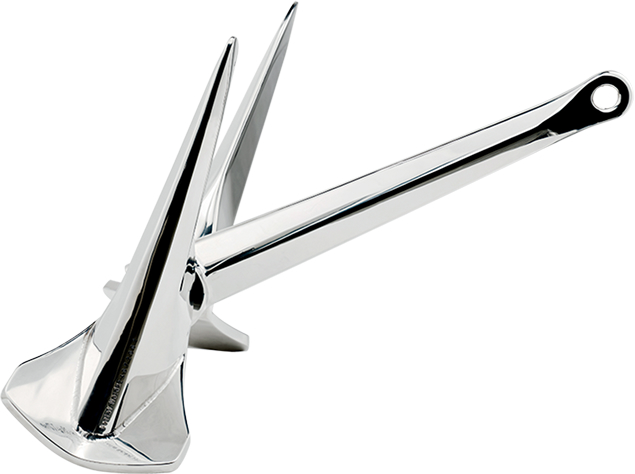

ULTRA SIDE POCKET
Join the revolution!
Latest innovation designed for vessels with limited bow space. Hand crafted in Europe with premium stainless steel, this anchor offers the legendary holding power.
The ULTRA Side Pocket Anchor is available in sizes ranging from 21Kg/46lbs to 1000Kg/1100lbs, with both Standard and Compact configurations. We offer options for Balanced or Unbalanced designs, ensuring a perfect fit for your vessel's specific requirements. Additionally, our hollow shank technology allows to produce heavier anchors without increasing size, making it ideal for boats with limited or insufficient side pockets.
The highest quality 316L and 318LN Duplex stainless steel polished to a mirror-like finish, the ULTRA Side Pocket Anchor is as stunning as it is functional.
THE MORE WIND THE MORE HOLDING POWER
We don’t compromise on quality or design, and neither should you
Hand-made from 316L and 318NL Duplex (shank) stainless steel and hand polished. Ultra Anchors demonstrate the importance of correct weight distribution and design when setting and recovering an anchor. In fact, invert any Ultra Anchor and it will instantly recover itself into the attack position. Such performance has been achieved thanks to the innovative patented features. Each anchor is easily recoverable due to the flat pivot surface on the underside base. Ultra Anchors are suitable for all vessel types and can be securely located on the bow roller. Standard anchor sizes range from 5 kg to 360 kg (larger anchors on request). Using Europe‘s best materials and fabricated by specialist engineers, Ultra Anchors are supplied with a lifetime warranty against manufacturing defects under normal conditions and use.

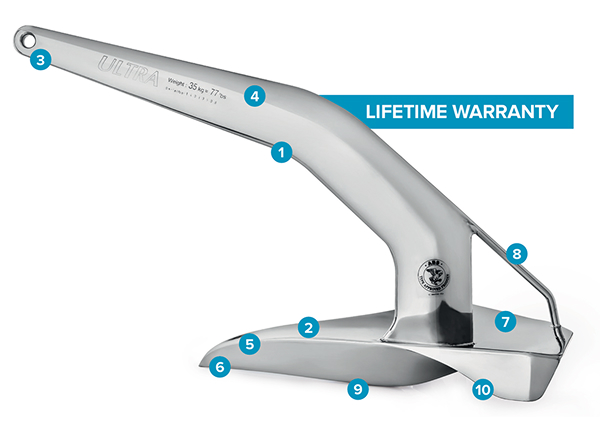

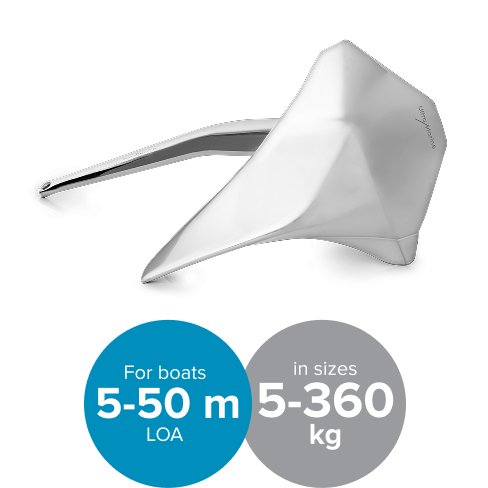

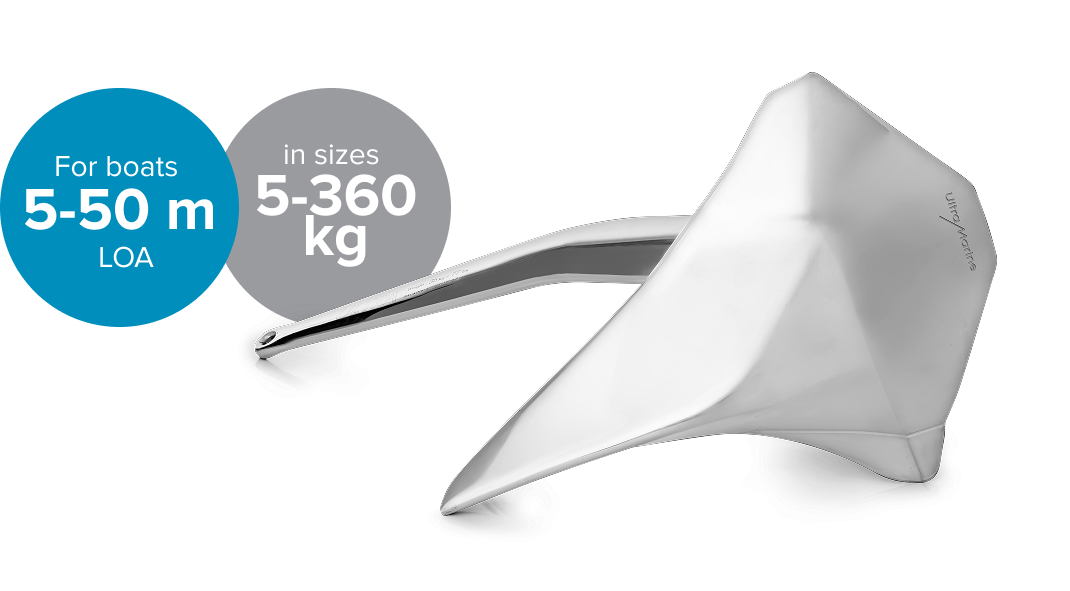

ULTRA ANCHOR
Uncompromising Performance-
1) 316L STAINLESS STEEL CONSTRUCTION
The anchor features one-piece construction and has no openings or indentations to catch mud, rocks or weeds. The glossy 316L and 318LN Duplex (shank only) gauge stainless steel is easy to clean and polish. Ultra Marine Anchors provides years of corrosion-free service, without the need to re-galvanize.
-
2) UPPER HOLDING PLATFORM
The concave base/fluke has the appearance of a spade or shovel, and provides extreme holding power as it has a greater surface area than conventional anchors.
-
3) REINFORCED EYE
Even under the most extreme load the shank reinforced eye will not bend, break or fail.
-
4) HOLLOW SHANK
The hollow shank places the centre of gravity deeper in the anchor’s body and closer to its penetrating tip. Ultra Marine Anchors always lie and set like floor right side up and in the „attack“ position.
-
5) CURVED TIP
The downward-facing, internally reinforced, reverse-curved tip allows Ultra Marine Anchors to grab and penetrate without depending on the weight of the chain.
-
6) SCRATCH-CATCH POINT
It is specially positioned at the bottom, it prevents dragging and provides an instant set when the anchor moves.
-
7) FLAT UNDERSIDE
Once you begin to recover the anchor from the sea floor, it pivots on the flat section and begins to release.
-
8) NON CHAIN-FOUL BAR
The clever design features of the non chain-foul bar ensures the chain cannot simply wrap itself around the shank and provides the ability to place a trip line.
-
9) LEAD-FILLED TIP
Lead is inserted into the anchor tip, achieving the optimal weight distribution and ensuring the anchor will penetrate unfavourable seabed bottom conditions.
-
10) SIDE WINGS PLATES
The side wing plates actually help the anchor bury itself deeper when pulled laterally due to a changing wind or tide. They also act to stabilize the anchor horizontally as it penetrates the seabed.
WHEN SIZE MATTERS
After years of precise development and engineering, ULTRA proudly unveils the ULTRA Side Pocket Anchor, the latest breakthrough in marine anchoring. Designed and hand-crafted in Europe, this anchor promises unmatched performance and elegance, redefining industry standards.
NEXT CHAPTER OF THE ULTRA PHENOMENON
OUR INNOVATION
-
1. Precision Engineering
Our innovative engineering approach allows us to create thinner bills that penetrate the seabed effortlessly, ensuring a secure and reliable hold every time.
-
2. Superior Holding Power
Carefully engineered flukes offer a broader contact surface than other anchors, providing exceptional holding power and stability in any conditions.
-
3. Advanced Burying Capabilities
The slanted shank is expertly designed to slice through the soil with minimal resistance, enhancing the anchor’s ability to bury itself deeply and securely.
-
4. Optimized Shoulder Wings
Positioned at a unique angle, the shoulder wings allow seabed material to flow through without creating resistance. The more strain the ULTRA Side Pocket Anchor is under, the deeper it buries itself, offering unparalleled safety and peace of mind.
-
5. Innovative Central Joint
Our patented central joint mechanism increases the anchor’s strength while facilitating the burying process. This self-cleaning design ensures smooth operation and prevents the anchor from becoming stuck, even in the most demanding environments.

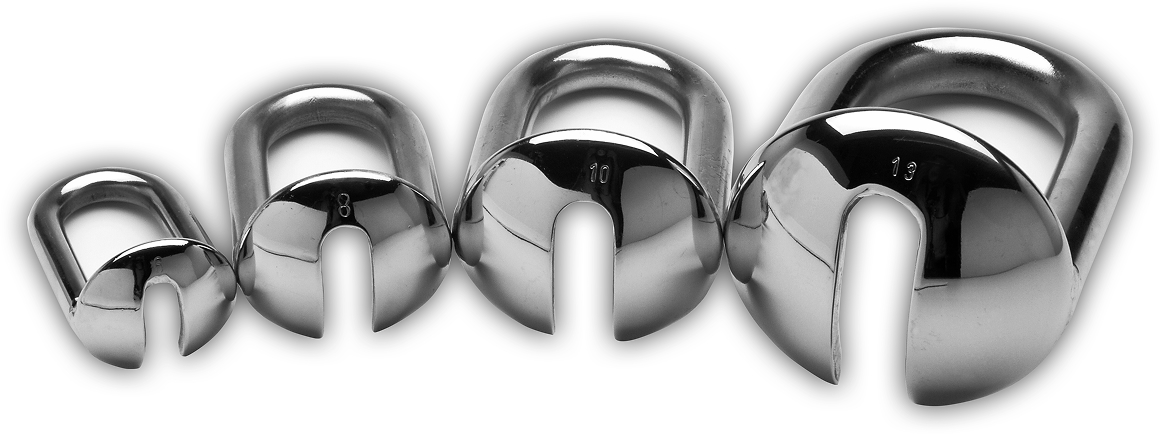

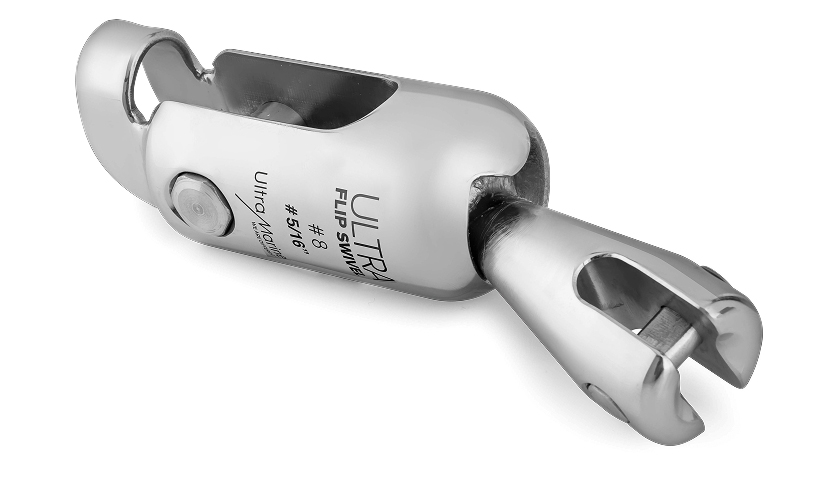

SMALL THING BIG DIFFERENCE ULTRA Flip Swivel
Eliminate situations when anchor is coming up the wrong way
The Ultra Flip Swivel is uniquely fabricated and connects the anchor and chain without the need for additional shackles. Fabricated from 316Ti stainless steel and hand polished for stunning presentation on the bow, the Ultra Flip Swivel is uniquely strong and slimline, and does not require lock pins or safety wires. The breaking strength of a swivel is typically higher than the connected chain and allows 30° rotation with complete 360° swivel. The Ultra Flip Swivel is fabricated with a unique flipping nub that assists the anchor in getting itself rightway up onto the bow roller. Combined with the rotation and 360° ability, setting and recovering your anchor is now easier and safer. Hexagonal head locking bolts prevent the need for additional grub screws to secure the swivel pins.

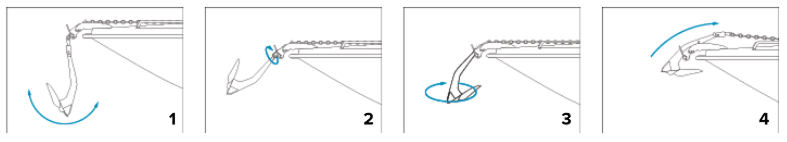

HOW IT WORKS
If the anchor is the other way around in the recovery stage (1), the Ultra Flip Swivel will always turn it to the correct position (2-3) and the anchor can be easily stored on the bow roller (4).
YOUR EVERYDAY 2 IN 1 TROUBLESAVER ULTRA ANCHOR RING

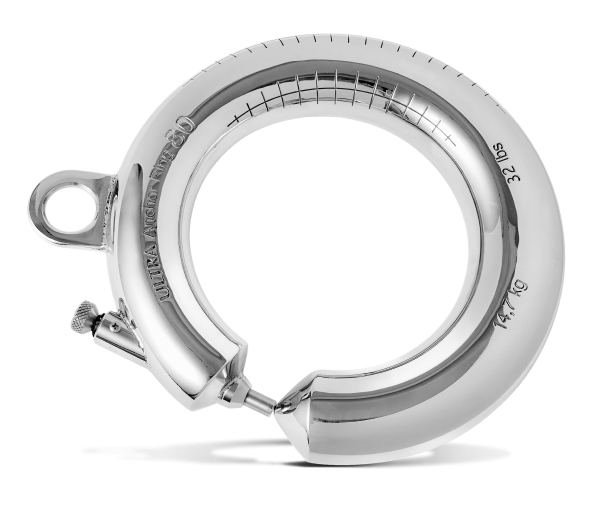

ULTRA ANCHOR RING
Designed to replace a chain or rope weight (Kellet). In case of anchoring with limited scope (busy anchorage or limited anchorage area), the Ultra Anchor Ring increases safety by adding weight to the anchoring system. By adding extra weight on the chain, the Ultra Anchor Ring reduces the vessel swing area and works as a shock absorber, improving comfort at anchor by reducing boat movement.
the Ultra Anchor Ring is also an important recovery tool. This is especially relevant in conditions where entering the water is not possible or preferable (such as cold water, rough sea conditions, or with dangerous wildlife around). In circumstances where you are unlucky and get caught on the bottom, using the Ultra Anchor Ring will assist you in your recovery prospects.
Click here to watch the ULTRA Anchor Ring product videoEMERGENCY ANCHOR RECOVERY

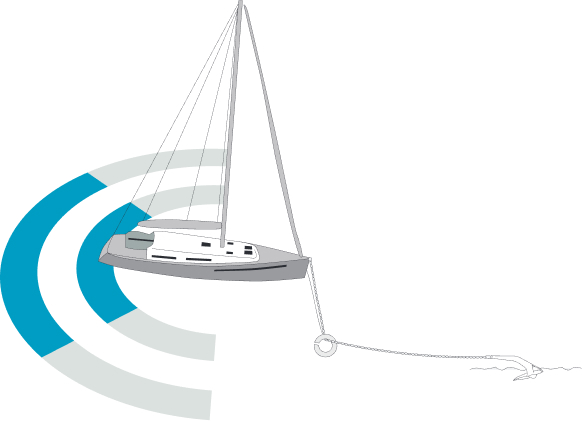

VESSEL SWING REDUCTION
By adding extra weight on the chain ULTRA Anchor Ring reduces the vessel swing area.
EMERGENCY TOOL
Ultra Anchor Ring used as an anchor retrival and recovery tool to free the anchor in necessary conditions.
HELPS YOU FEEL CONFIDENT
High quality chains with the best characteristics for offshore use
Durable strong chain is essential for safe anchoring solution. We supply high quality stainless steel chains d crafted in Europe. Maximazingdurability and reliability. Sizes are from 6 mm up to 26 mm and in ISO or DIN norm. You can also chose from stainless steel quality Grade 60 (AISI 316 L), Grade 60 PLUS (AISI 318 LN Duplex) and Grade 70 PLUS (Superduplex A182 F61). All chains are tested, calibrated and bright polished. Stainless steel chains help match our Ultra Anchors and Swivels the best way and having stainless steel chain helps you to store your chain in your locker and there is no need of re-galvanization in the future.

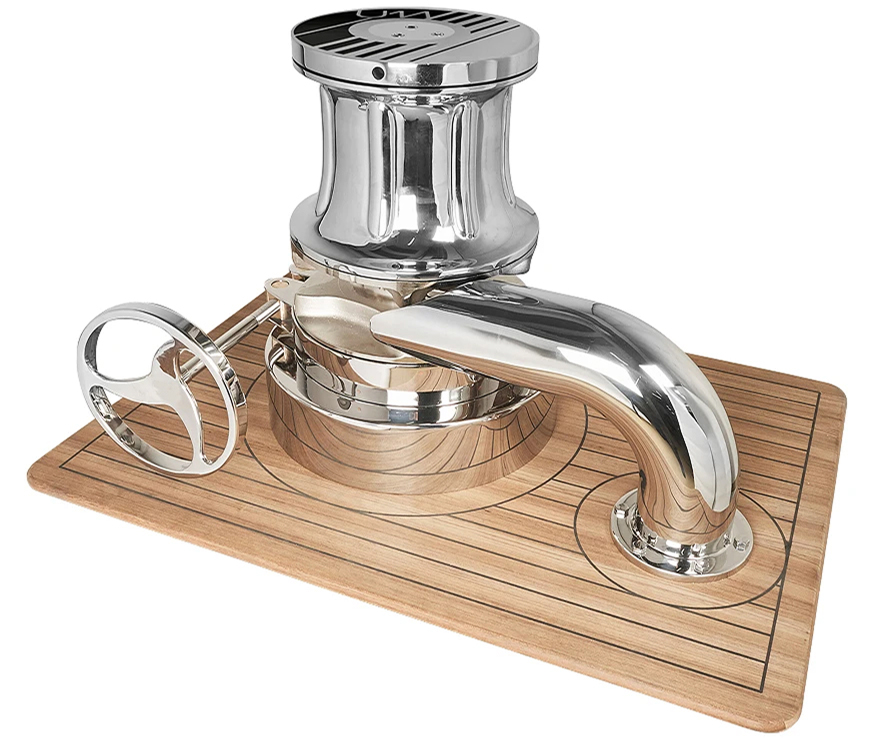

STRONG AT THE END UM Windlass
Complete range

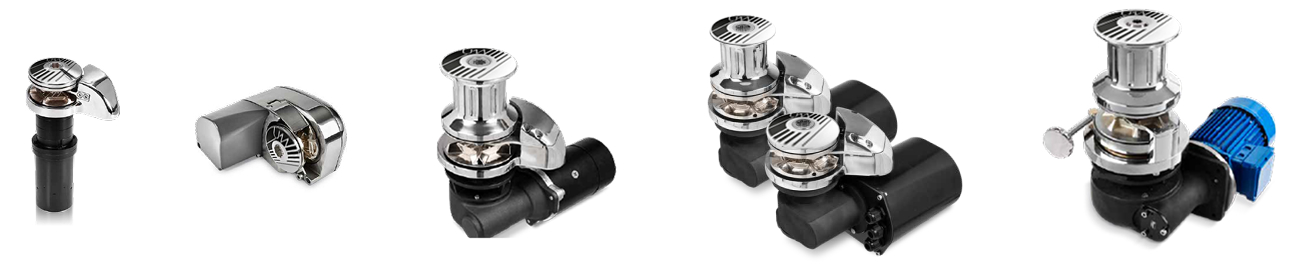

We offer a complete range of premium electric and hydraulic windlasses in both horizontal and vertical configurations for boats up to 90 meters LOA. Our solutions cater to a wide variety of applications, supporting all conventional chain sizes and specific chain-rope combinations. In addition to our standard range, we provide custom solutions for OEM applications. As true anchoring specialists in the industry, our team is prepared to offer comprehensive design and development support, ensuring a complete anchoring solution. All our products are manufactured in Europe to meet and exceed the standards of the world‘s most important certification agencies.

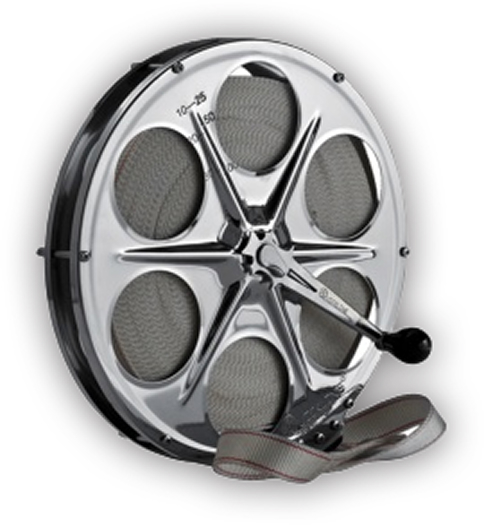

ULTRA Dyneema
In the past, this product was known as Quickline and has been offering easy storage of fl at rope line on stern for many boat owners. Generally used as stern mooring line or stern anchor line and being easy and quick to store when not in use. Now the New ULTRALINE with Dyneema fl at fl oating rope with breaking load increased up to 3200 Kgf. The width of the line is 22mm and it has become the only fl at line that is much closer to regular rope in shape, reducing the noise problem of the previous model. Also its high breaking load and UV resistances increase its efficiency.
-
1. Hole guides
Provides guide for length of line deployed and assists that the flat rope to dry quickly.
-
2. Multi functional winch handle
316L multifunction handle fits a standard winch handle socket and includes three keys for opening deck fittings as well as a shackle buster.
-
3. Twin rollers
Teflon rollers and stainless steel guides expel excess water from flat rope while leading it into the reel.
-
4. Flat rope
Flat ropes are UV resistant; will run through 1" shaves and when folded can fit into the jaws of a self-tailing winch. Flat rope is easily belayed to standard deck cleat.
-
5. Mounting bolts
Housing bolts are also incorporated into the mounting system for rail and deck mounted installations.
-
6. Rope guides
Scale indicates approximate amount of line in use.
-
7. High polished 316L stainless steel housing
The 316L stainless steel casing does not rotate; line rotates inside on hub and does not interfere with nearby equipment.

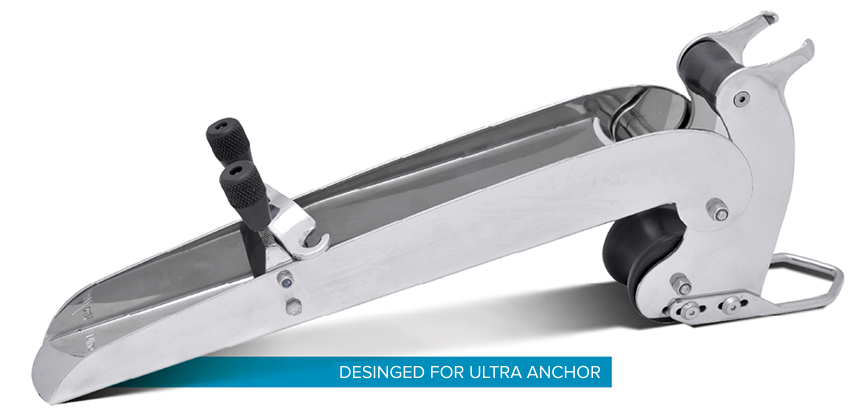

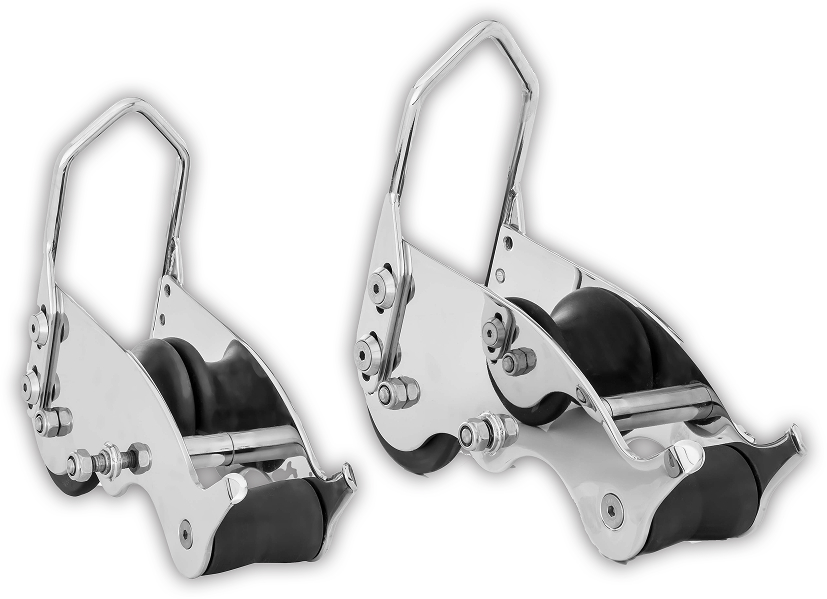

ULTRA Bow Roller
The Ultra Bow Rollers design decreases noise and scratches, while limiting extra anchor movements. Designed to fi t all of our Anchors, it also off ers the extra security locking of the Anchor shank. You can also purchase just the front moving part of our Bow Rollers, called the Ultra Bow Roller Car.
ULTRA Bow Roller Car
The Ultra Bow Rollers design decreases noise and scratches, while limiting extra anchor movements. Designed to fi t all of our Anchors, it also off ers the extra security locking of the Anchor shank. You can also purchase just the front moving part of our Bow Rollers, called the Ultra Bow Roller Car.
ULTRA Chain Grab
The Ultra Chain Grab protects the windlass from constant chain pull, and is easily attachable to a loaded anchor chain, disengaging automatically from the chain upon retrieval. Eliminate the creaking sound of an anchor chain on your bow roller by transferring chain pressure from the windlass to the mooring cleat. Using the UM Chain Grab also gives you the opportunity to fi x problems on the windlass while your boat is at anchor.

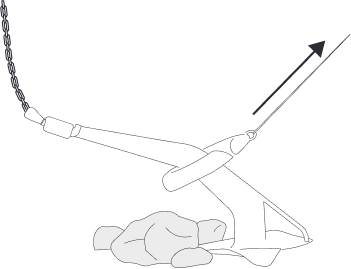

ULTRA Trip Hook
The Ultra Hook eff ectively rescues your anchor when chains become crossed – providing fast and safe recovery without the need to take any unnecessary risks.
