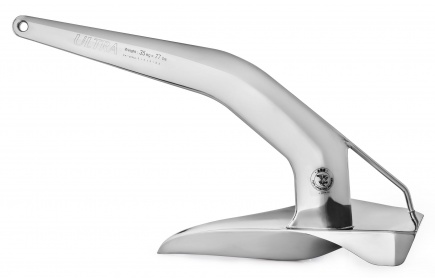

Ultra Marine Ancla


  • Ancla de los Mundos No.1
  • Potencia máxima de sujeción
  • Déjalo, ponlo, olvídalo ...
select your boat type and fill in its length
o Ver otras alternativas

RECOMENDAMOS LO SIGUIENTE Ancla

Código Peso Precio Ex. TINA Precio incl. TINA
UA05 5 kg 574 € 694,54 €
UA08 8 kg 711 € 860,31 €
UA12 12 kg 978 € 1 183,38 €
UA16 16 kg 1 251 € 1 513,71 €
UA21 21 kg 1 536 € 1 858,56 €
UA27 27 kg 1 904 € 2 303,84 €
UA35 35 kg 2 457 € 2 972,97 €
UA45 45 kg 3 046 € 3 685,66 €
UA60 60 kg 4 361 € 5 276,81 €
UA80 80 kg 5 676 € 6 867,96 €
UA100 100 kg 7 283 € 8 812,43 €
UA130 130 kg 9 401 € 11 375,21 €
UA160 160 kg 11 424 € 13 823,04 €
UA200 200 kg 14 816 € 17 927,36 €

GIRATORIO APLICABLE ADECUADO

Código Precio Ex. TINA Precio incl. TINA
UFS 6-12 214 € 258,94 €
UFS 8-21 258 € 312,18 €
UFS 10-35 306 € 370,26 €
UFS 13-60 422 € 510,62 €
UFS 16-100 620 € 750,2 €
UFS 20-160 1 010 € 1 222,1 €
UFS 26-250 1 890 € 2 286,9 €

More than 12 000 satisfied customers.

Ultramarine´s outstanding design demonstrates, why a correct weight distribution is so important when setting and recovering anchor. In fact, invert any ULTRAnchor and it will instantly recover itself to the attack position. We focused on practical use, and behaviour during anchor´s operation, followed by performance which has been achieved with the innovative patented features, as every UM anchor displays.

Including a curved lead filled tip for instant penetration, a hollow shank for weight distribution optimum and surface concaved base for maximum holding power, and finally large side wing plates to avoid release during changing wind or tide conditions. Furthermore, each anchor is easily recoverable with the flat pivot surface on the underside base.The ULTRAnchor is suitable for all vessel types and locates securely onto the bow roller. Standard anchor sizes range from 5kg to 200kg with larger anchors available upon request.

Nuevas características innovadoras y patentadas.

OJO REFORZADO

Incluso con las cargas más extremas, el ojo reforzado de la caña no se doblará, romperá ni fallará.

ESTRUCTURA DE ACERO INOXIDABLE 316L

El ancla Ultra Marine Anchor presenta una estructura de una sola pieza sin aberturas ni hendiduras que puedan capturar lodo, rocas o algas. El brillante acero inoxidable de calibre 316 no solo es de gran belleza, sino también fácil de limpiar y pulir. Un ancla Ultra Marine Anchor prestará servicio libre de corrosión durante años y sin necesidad de recibir ningún tratamiento de nueva galvanización.

CAÑA HUECA

La caña hueca y, por tanto, el aumento de la otabilidad colocan el centro de gravedad en un punto más bajo del cuerpo del ancla y más cerca de su penetrante punta. Las anclas Ultra Marine Anchor se sumergen siempre al fondo marino en la dirección y posición correctas.

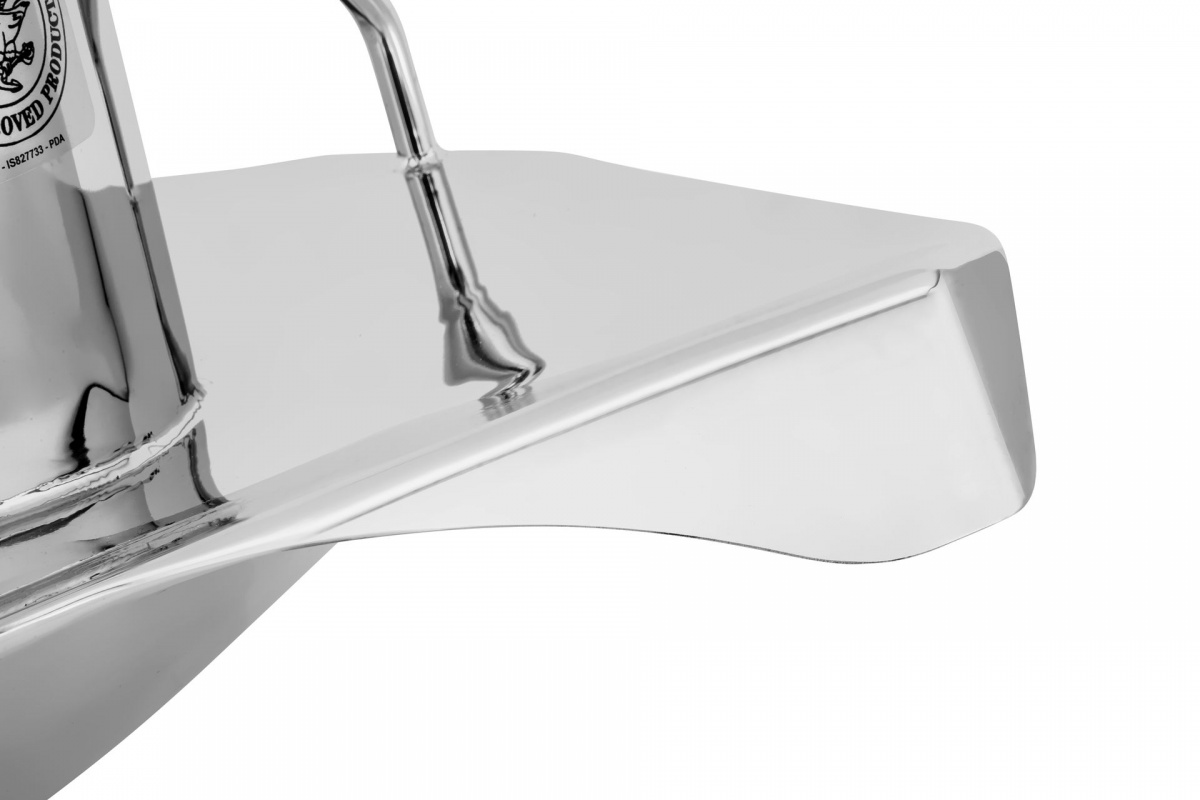

PLATAFORMA DE SUJECIÓN SUPERIOR

La base/uña cóncava tiene el aspecto de una pala, proporciona una fuerza de agarre extrema ya que tiene una super cie más grande que las anclasde estilo convencional.

PUNTA CURVADA

La punta curvada hacia abajo y con refuerzo interno permite a las anclas Ultra Marine Anchor un agarre y una inmersión sin importar el peso de la cadena.

PUNTO DE AGARREINMERSIÓN

Está ubicado de manera especial en la parte inferior. Evita el arrastre y proporciona una jación inmediata cuando se mueve el ancla.

BARRERA DE PREVENCIÓN CONTRA EL ENGANCHE DE LA CADENA

El inteligente diseño de la barrera contra el enganche de la cadena garantiza que la cadena no pueda enrollarse fácilmente alrededor de la caña del ancla y permite colocar una driza.

PARTE INFERIOR APLANADA

Una vez que empiece a levar el ancla del fondo del mar, esta gira por sí misma en la sección aplanada y comienza a liberarse.

ALAS LATERALES

Las alas laterales en realidad ayudan al ancla a hundirse a mayor profundidad en el caso de tirones laterales ocasionados por un cambio de viento o marea. También actúan en la estabilización horizontal del ancla conforme esta se sumerge en el fondo del mar.

PUNTA RELLENA DE PLOMO

Se ha vertido plomo en la punta del ancla para distribuir el peso de forma óptima y garantizar la inmersión del ancla en el fondo del mar incluso en condiciones adversas.

Más que 12 000 clientes satisfechos


Dan Seifers

We love our Ultra anchor. We have had it for 7 years and have anchored everywhere from Australia, New Zealand, Tahiti, Sitka Alaska and Mexico. It has NEVER failed, even in 50 knot winds.
Dan
Ver toda la experiencia

Hakan ÖGE

"Finally I have arrived in Gibraltar. Up to now, 90% of the places I have stopped I had the anchor in. Everywhere and every seabed the anchor hold tight at first attempt. I never had to try second time. I reversed the engine and forced repeatedly, the more I pulled the more difficult it became to bring back the anchor, indicating it digs itself deeper. Now I rarely dive to check the anchor and it…
Ver toda la experiencia

ATM TEKNİK

Hi Mr. Erkutay,

I had a chance to try our new ULTRAnchor and the swivel, yesterday. We went to a specific place where we could not get the previous anchor held even by trying for several times and the ULTRA held at the first attempt. After that the known storm caught us while we were out of Buyukada island, yesterday. We anchored at another place after the storm to get some rest and the same…
Ver toda la experiencia

Nusret Ferda Bertan

God bless your hands, efforts and mind: You are making the world’s best anchor. Each time I anchor; I remember Atila Rezak, who helped during the design process of this anchor by trying it at his boat and all other friends contributing, with respect. I am staying like a stone with my new boat Benetau 50 at a location (Bodrum-Bitez) where I previously had big problems with other anchors on other…
Ver toda la experiencia

Dick CAREY

Dear Erkutay,

We have now tried it out in mud, sand and coarse sand and it has worked extremely well every time.

With our last anchor we could not get it to set in sand - our biggest test - even with scopes of 10:1. The Ultra has set firmly and quickly every time with scopes of 3:1.

The anchor also self launches every time whereas we often had to give our last one a kick to get it moving.

Ver toda la experiencia

VAGABOND

We hit the road to the city Beaufort NC. However, the weather turned to the rain like cataclysm when we were about the reach the Beaufort. The wind was at least 20-30 knot.
We hardly found our way to the crowded anchoring area. In the evening we met with Staublar again and after diner we went back to our boat before it was too late. Fortunately, we came back early because, a dragging boat at…
Ver toda la experiencia

Ersan SAHIN

Mr. Erkutay,

You did design a fabulous anchor. I can now anchor even by shorter scope at all places where I could not with my old B…. anchor.

Congratulations and keep up with good work.

Captain
ERSAN SAHIN
Ver toda la experiencia

David Bock

This is our 2nd year using the Turkish made Ultra Anchor/Swivel/Grab hook. I was 1st made aware of it where someone recommended the Turkish made Ultra Swivel which is a unique design that rights the anchor as it comes over the roller. We were fortunate enough to be offered the opportunity to trial test an Ultra all summer cruising season last year and after anchoring out all season and not…
Ver toda la experiencia

Nick Creed, Gunfleet Marine

I keep on relaying my experience with Gunfleet 58/04 (anchored with an ultra anchor) where in 45-50 knots of wind another 40ft boat dragged its anchor which rode up our chain and became jammed in our stem-head. For the next 2 hours there were TWO boat anchored in big and nasty swinging winds, on just ONE Ultra Anchor - if ever I had any doubts that the Ultra was just a beautiful looking peace of…
Ver toda la experiencia

Domenico Vendramin | it

Buonasera,

al ritorno dalle vacanze non posso che esprimere il mio più alto giudizio positivo sull'ancora. Non ho di fatto avuto situazioni al "limite" ma posso dire che l'ancora ha sempre "ferrato" al primo tentativo. Mi sono sempre sentito sicuro. Bhè, non è del tutto vero. Ricordo una sera in baia Artatore (isola di Lussino) che mi ha costretto a non lasciare la barca per andare all'omonimo…
Ver toda la experiencia

Randy

A quick update on our 16kg Ultra anchor. We are with 9 other boats are headed to The Broughton Archipelago. Two nights ago we anchored with the others in a small bay inside Port Neville. A small bay with lots of boats meant a short scope 93 ft of chain in low 38 feet for us the last boat in. It turned this was not a protected anchorage, picked by the flotilla leader...the wind blew 15-22 knots…
Ver toda la experiencia

Nick Creed | it

Io continuo a ricordare la mia esperienza con una Gunfleet 58/04, ancorata con una ULTRA Anchor in una situazione di 45-50 nodi di vento. L´ancora di un'altra barca di 40ft si era liberata e si era venuta ad incagliare sulla nostra catena.

Per le successive 2 ore le nostre due barche, entrambe ancorate su UNA - ULTRA Anchor in condizione di vento molto forte.

Se mai ho avuto dubbi che l…
Ver toda la experiencia

John Celick

The combination of the Ultra-Anchor, your nifty swivel and your chain hook are in danger of making us become over-confident in our anchoring skills.
We've been on the hook every night for the last six weeks in the Gulf of California. We've seen your demonstration that the anchor will reset itself but it has not had to prove that to us. We've been rock solid each and every time that we've gotten…
Ver toda la experiencia

Sertug Alptekin

I can tell you by all my heart that ULTRAnchor is the only anchor which lets me sleep comfortably.
This is the 3. anchor I bought from you and I placed the order even before I took delivery of my new boat like at the previous ones.
I don’t go out of a marina without ULTRAnchor.
I congratulate you once again for this very advanced engineering product.

Bes regards,

sertug

Ver toda la experiencia

Rick Heinen

Dear Erkutay,

We want to inform you how happy we are with the Ultra anchor. We have been anchored out now for 6 weeks along the Turkish coast in some of the same mud bottom that we dragged in with our old Rocna. In Knidos for example is hard clay/ mud, and we popped out the Rocna as it was fouled with hard mud and wouldn't reset. The Ultra dug right in penetrating deeper and giving us a good…
Ver toda la experiencia

Tom Sparrow

Hello Gene,
As promised at last week's boat show I have the following re the Ultra anchor: In 2004 I experienced a middle of the night anchor failure in the Sea of Cortez resulting in a grounding of my 54 foot Offshore vessel. I subsequently purchased a larger 72' Offshore in 2008. Keeping in mind my previous troubles I went looking for a better anchor for windy night conditions. I met Randy…
Ver toda la experiencia

Capt. Ed Carter

In 5,000 nM of cruising aboard our 40 foot sailboat from Houston to Grenada over the last 1 1/2 years, I’ve used my 60lb Ultra in all kinds of anchoring situations and bottom surfaces as well as 360 degreeswings. I’ve been through many 40-50kts squalls at anchor. My Ultra has never ever dragged. I sleep very well knowing the Ultra has proven itself. Now I just have to worry about the other…
Ver toda la experiencia

Wreck Creation

Hi Randy,

It was a pleasure meeting you at the Annapolis sail boat show last week.

We have a 2006 meridian 408 and had purchased your Ultra Anchor from you during the 2014 Annapolis boat show. I am pleased to report after one years use that this was one of the best additions to our boatso far. We have anchored out under not-so-good conditions and this anchor was like a magnet. During the Blue…
Ver toda la experiencia

Joe Candido

Hi,

I have a 1975 Pearson 35 (13,000 lbs empty). I’ve had the boat for many years and she’s in fantastic condition. We live and sail on Lake Champlain in Vermont. The lake is about 120 miles long which generates 4 - 6’ swells and 20kts + winds pretty often. We’ve always had problems with our 35lbs CQR anchor holding. Most nights are sleepless if the wind is above 15kts. Really I don’t sleep…
Ver toda la experiencia

Marnie

Randy,

We love our shiny Ultra-60 lbs! In fact we just matched it with a SS chain and new gypsy. Instead of the castles created by the old galvanized chain, the new "jewelry" just melts into the chain locker, as myhusband observed, "like when Scrooge McDuck was pouring coins into his vault". A little pricy, double what a new galv chain would be and a lot less than back surgery. And no more…
Ver toda la experiencia

Dan Seifers | it

Amiamo la nostra ULTRA Anchor. L´abbiamo da 7 anni, ci siamo ancorati ovunque dall´Australia, Nuova Zelanda, Tahiti, Sitka Alaska e Messico. Essa non ha mai fallito, anche a 50 nodi di vento.
Dan

Ver toda la experiencia

Will Woodman

Nice and give the market what it wants, but I adore my Shinny Ultra Anchor, and receive many compliments about it. The mud ofthe Saint Johns river slides right off when recovering it unlike my oldgalvanized plow, and the Ultra Anchor sets the first time every time, and has held fast in some serious thunderstorms in both mud and sand.

I do need a replacement for the shock absorber on the bridle,…
Ver toda la experiencia

David Pope

Dear Gene:

Just want to let you know that the ULTRA Anchor (UA35-70) with the ULTRA Flip swivel (UFS10) and the Articulated ULTRA Bow Roller has performed exceptionally well during our cruise down fromMaine to the Bahamas and back to our home port in Virginia this last winter season. We had the system installed by Maine Cat Inc., during the construction of our Maine Cat P47. We had seen the…
Ver toda la experiencia

Marshall Duffield

Hi Randy,

I wanted to endorse your anchor. I anchored in 12 feet of water at Rippers in Catalina a couple of weekends ago. I was able to see your anchor work first hand. I also saw my neighbors anchors with the flukesand they were all marginally secured to the bottom.
I wanted to let you know how much nicer it is to anchor with your anchor knowing you’re secure and there’s little chance…
Ver toda la experiencia

Hakan ÖGE | it

"Finalmente sono arrivato a Gibilterra. Fino ad ora, il 90% dei posti in cui mi sono fermato mi sono dovuto ancorare. Ovunque ed in ogni fondale l'ancora teneva bene e al primo tentativo. Non ho mai dovuto provare la seconda volta. Ho invertito il motore e sono andato indietro ripetutamente, più ho tirato e più l´ancora rimaneva salda nel fondo, indicando che scavava sempre più in profondità. Ora…
Ver toda la experiencia

Alexus Sheppard

Hi Randy,
We bought our 60 pound Ultra anchor after the Seattle Boat Show this last spring. We have a 42' Nova Sundeck trawler-style motoryacht and are from Alameda, CA. We are just now heading back south from a trip up the coast from San Francisco Bay, through the San Juans, further up through the Canadian Gulf Islands, on up into Princess Louisa Inlet, then on to Desolation Sound, and just…
Ver toda la experiencia

Rondy Dike | it

Cari signori,

Volevo solo farvi sapere che il vostro "Ultra Flip Swivel" funziona davvero bene.
L´ho provato molte volte e adesso mi sento tanto sicuro di lasciare che mia moglie salpi l´ancora.
La semplicità, con la quale ruota l´ancora nella posizione corretta funziona ogni volta.
Ancora una volta grazie per l´ottimo prodotto.
Non vedo l'ora di acquistare una vostra ancora Ultra presso il…
Ver toda la experiencia

Referance Ultra Flip Swivel

Dear Sirs
I just wanted to let you know your “Ultra Flip Swivel” really works great.
I have tried it many times now and feel its safe to let my wife stow the anchor. It simplicity, in flipping the anchor over into the correct stowage position prior to being is pulled over the bow roller works every time.
Again thanks for a great product.
I am also looking forward to picking up one of your Ultra…
Ver toda la experiencia

Greg and Terry Coleman

Hello Gene:
I wanted to give you a report on our first experience with the Ultra anchor which took place over the 4th of July weekend in the San Joaquin Delta. Our boat is a Navigator 4800 which weighs approximately 50K lbs. We anchored in 15 ft. of water in an area with a soft mud bottom and moderate grass. The anchor set immediately on the first attempt and we let out all chain with a scope of…
Ver toda la experiencia

uma-banner-1No renunciamos a nada en lo que respecta a calidad o diseño, y usted tampoco debe hacerlo.

Pulidas y hechas a mano en acero inoxidable 316. Las anclas Ultra Marine Anchor demuestran la importancia de la distribución correcta del peso y del diseño a la hora de echar y levar un ancla. De hecho, gire cualquier ancla Ultra Marine Anchor y esta regresará de inmediato a la posición correcta. Esta utilidad la hemos logrado gracias a las innovadoras características patentadas que se indican a continuación. Todas las anclas pueden levarse fácilmente gracias a la superficie plana giratoria situada en la parte inferior de su base. Las anclas Ultra Marine Anchor pueden utilizarse en todo tipo de embarcaciones y colocarse de forma segura en el rodillo de proa. El tamaño estándar del ancla oscila entre 5 y 360 kg (existen anclas de mayor tamaño disponibles, previa solicitud). Gracias a su fabricación con materiales de la más alta calidad de Europa y a cargo de ingenieros especializados, las anclas Ultra Marine Anchor se entregan con garantía de por vida contra defectos de fabricación en condiciones normales de uso.

Hollow Shank: Enables weight to be concentrated on anchor tip.

Tubular Construction: Anchor cannot lie on its spine and recovers instantly to the attack position. Anchor will also load correctly into the bow roller.

Lead Filled Tip: Lead is inserted into the anchor tip, achieving the optimal weight distribution and ensuring the anchor will penetrate unfavourable bottom conditions.

Scratch-Catch Point: Especially, it is positioned at bottom. It prevents dragging and provides instant set when anchor moves.
Curved Tip: Importantly, the anchor tip is shaped downwards, ensuring a continuous setting under unfavourable weather conditions. Its angles on the other hand let it help anchor instant set even the anchor is not at the right attack position.

Max Holding Power Base: The concaved base/fluke has the appearance of a shovel and has extreme holding power with a grater surface area than conventional style anchors. The result is more secure, higher holding power anchor that will not release.

Reinforced Eye: Even under the most extreme load the shank’s reinforced eye will not bend, break or fail.

Flat Underside: Once you begin to recover the anchor from the sea floor, it pivots itself on the flat section and begins to release (boat should be directly over anchor).

Side Wing Plates: The ULTRAnchor does not release in a changing wind or tide, it performs a complete 180 degree rotation (while still buried) on its own length and holds firm. On the other hand, it helps easy transport and a continuous geometry on bow rollers.

Non Chain-Foul Bar: Often chain can foul around the shank of the anchor, resulting in the anchor not able to set. The clever design features of the non chain-foul bar ensures chain simply cannot wrap around the shank and provides the ability to attach a trip line. On the other hand, it helps easy transport and a continuous anchor geometry on bow rollers.

Anchor Weight Detail: The anchor weight is stamped into the shank and identifies the anchor size in both kg’s and Ibs.

Serial Number: Every ULTRAnchor is stamped with a unique serial number, ensuring your anchor is always identifiable.
