Ultra Marine Jonction d’ancre Flip Swivel

ou Voir d'autres alternatives

NOUS RECOMMANDONS LES Jonction d’ancre Flip Swivel SUIVANTES

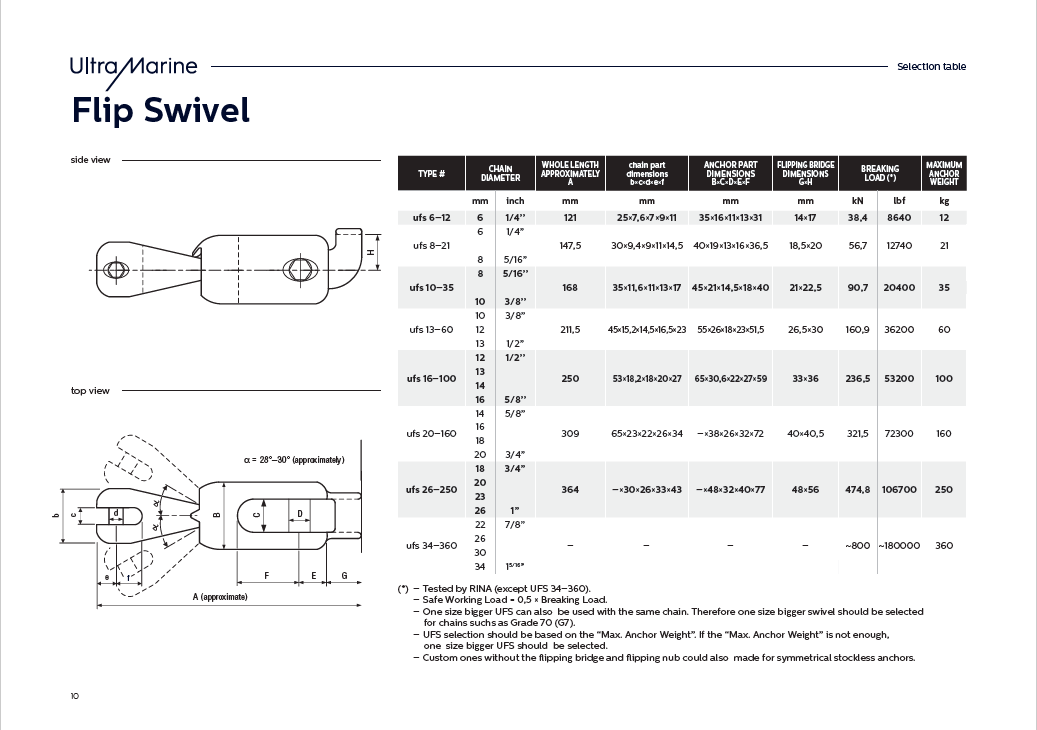

Code Prix Ex. T.V.A Prix incl. T.V.A.
UFS 6-12 281 € 340,01 €
UFS 8-21 334 € 404,14 €
UFS 10-35 391 € 473,11 €
UFS 13-60 554 € 670,34 €
UFS 16-100 832 € 1 006,72 €
UFS 20-160 1 553 € 1 879,13 €
UFS 26-250 3 811 € 4 611,32 €

Le plus avancé Jonction d’ancre Flip Swivel.

Pivot bien connu, une petite partie dans le système d'ancrage complet, mais grand facteur de succès de l'ensemble du processus d'ancrage. Notre conception unique assure l'absence de dommages de votre bateau, le fonctionnement sûr de l'ancre et la récupération facile sur le rouleau d'arc. Peu importe la marque ou le type d'ancre que vous utilisez, vous pouvez absolument faire confiance à notre conception Ultra Flip Swivel, vous offrant un fonctionnement sans heurt et les résultats attendus.

Comme tous les produits d'Ultra Marine, il a été conçu avec passion, expérience et soin dans les moindres détails, avec des exigences élevées sur les matériaux utilisés. Peu importe nos produits, vous trouverez maintenant ou plus tard, l'Ultra Flip Swivel est un bon début et un investissement relativement faible - avec un tel effet sur quelque chose que vous avez dépensé beaucoup plus.





uma-banner-2L’émerillon articulé est doté de caractéristiques techniques uniques.

L’Ultra Marine Jonction d’ancre Flip Swivel  est unique de par sa fabrication. Il permet de relier l’ancre à la chaîne sans aucun autre accessoire . Fabriqué en acier inoxydable 316 et poli à la main pour un aspect esthétique parfait, l’Ultra Marine Flip Swivel est à la fois extrêmement résistant et mince, et n’exige de ce fait ni goupille ni fil de sécurité . La résistance à la rupture de l’émerillon est généralement plus élevée que la chaîne qui y est attachée et permet une rotation de 30° avec un pivotement complet de 360°.

L’Ultra Marine Jonction d’ancre Flip Swivel  est doté d’une bande de frottement unique qui permet à l’ancre de se placer correctement sur le davier d’ancre. Associé à sa capacité de rotation à 360°, le positionnement et le relevage de l’ancre sont désormais plus faciles et plus sûrs. Les écrous de blocage à tête hexagonale permettent d’éviter d’utiliser des vis sans tête supplémentaires pour fixer les goupilles de l’émerillon.

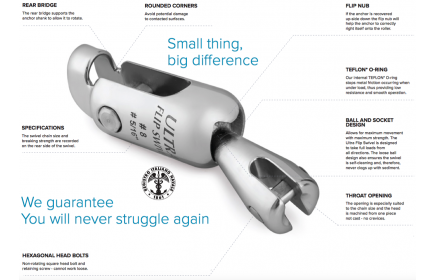

Corps d'une seule pièce: Fabricated (not cast) one piece body ensures maximum strength. It is suitable to be used with most anchor types.

Tête d'une seule pièce: Fabricated (not cast) one piece swivel head (which includes the semi spherical ball) ensures maximum strength.

Balle semi-sphérique: Self cleaning and allows 360 degree swivel.

Boulons à tête hexagonale: Ensures locking bolt cannot release unintentionally.

TEFLON * Joint torique: Our internal TEFLON O-Ring stops metal friction occurring when under load providing low resistance and smooth operation.

Flip Nub: If the anchor is recovered up-side down the flip nub will assist the anchor to correctly right itself onto the roller.

Coins arrondis: Avoid potential damage to contacted surfaces.

Ouverture de la gorge: The opening is specially suited to the chain size.

Caractéristiques: The swivel chain size and breaking strength is recorded on the rear side of the swivel.

garantie: All Jonction d’ancre Flip Swivel  are supplied with a standard three year warranty.

*TEFLON Du Pont
